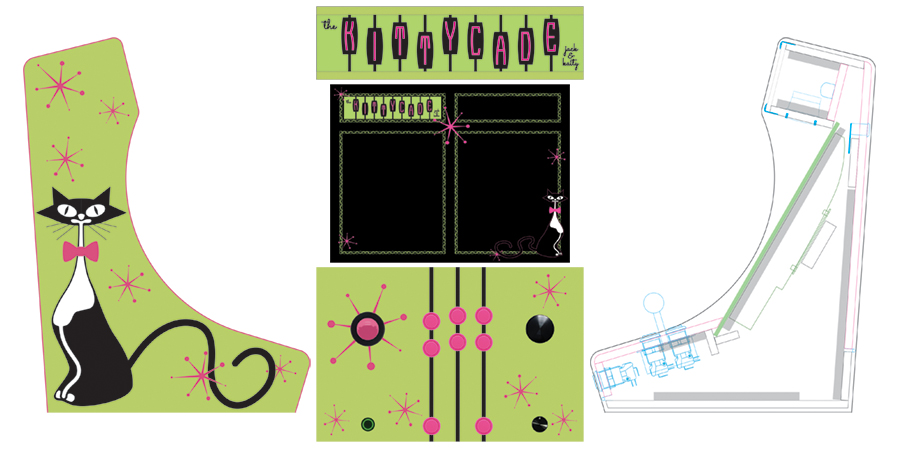

The third project in this series is a bartop arcade machine to go in the bar my son and daughter-in-law built in the front room of their house. The theme is based on the logo I created for the bar, “Katie’s Corner” and uses pink, green, and their cat, Kitty.
The cabinet is 17.5″ wide, 23″ high, and 17.5″ deep. We’re using the same Raspberry Pi 5 that is in the other arcades, an 8-way joystick, 6 buttons for game control and 2 buttons for coin and admin functions, and a spinner. An external USB port will allow multi-player use.
Components:
- Powered by Raspberry Pi 5, 2.4Ghz 64-bit quad-core CPU, 8GB RAM, 128GB EVO+ Micro SD Card, Black case w/ fan and heat sink
- Ultimarc I-PAC2, 32 inputs plus trackball and spinner to USB
- Industrias Lorenzo Jalisco Pushbuttons in Pink
- Ultimarc J-Stik 4/8-way Joystick w/ Pink Balltop
- Ultimarc SpinTrak Spinner, w/ Black/Silver Knob and Small Fly-Weight
- Suzo Happ 110W Power Supply
- Cabinet Mount Dual USB 3.0 Port
- LED Light Strip for Marquee
- And Pink T-Molding (from T-molding.com)
- Latching SPST Push Button Power Switch with green LED indicator
- 5W + 5W Mini Stereo Amp, with Kaish Aluminum knob
- Two (2) 4Ohm 5W Full Range Audio Speakers, w/ Grills
- DELL 19In P1917S LPS LED Backlit LCD, 1280×1024 5:4 Monitor
- Held in place with a Square VESA 75 / VESA 100 Adapter Plate
- Two (2) Stainless Steel Piano Hinges
- Cam Lock
- Heavy Duty Magnetic Catches (for CP)
- 18AWG Barrel Plug Connectors (for 12VDC and 5VDC power)
- We like solid core Birch Plywood (0.468″, called 1/2″,for this one)
- Which we cut on a 4×8 bed ShopSABRE PRO 408 CNC Router
- Found cool Rubber Feet at, can you guess…rubberfeet.us
- Vinyl for the Marquee is Oracle 8800 Translucent Backlit Sign Vinyl
- Plexi for the Marquee is from Fab Glass and Mirror
- And we found cool aluminum extrusions for the Marquee retainers
- Side graphics and CP overlay printing is by our friend Scott at Game On Grafix
- Glass for the display comes from One Day Glass (15.5″ x 16.4375″, Light Grey, Tempered, 0.25″ glass is about $50 shipped)
